Universal Operating Room Equipment Electric Image Operation Table C-arm
Model:MC-99E-1
1,Main Usage & Structure Of segrgial operation table:
MC-99E-1 electric image integrated operating table applied a combination of modern technology and humanization design concept, electro-mechanical drive technology. This product combine many functions.
1.Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2,Vertical panning up to 530mm, do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.
3,4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.
4,Have inset emergency power.
5,In set waist bridge.

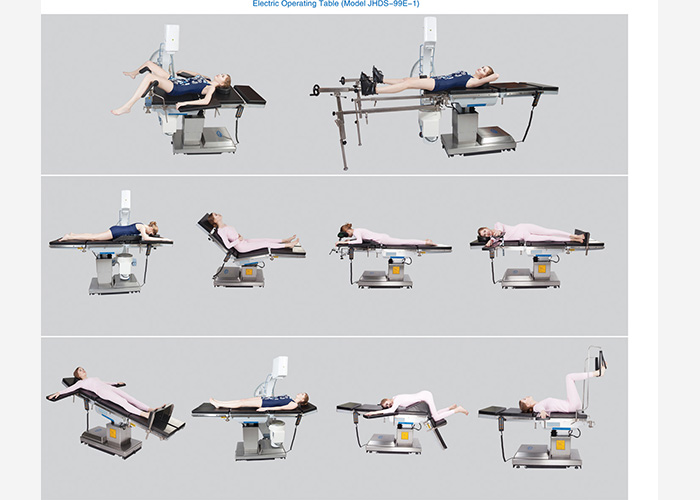

6,The mesa of the table can male V style body position 100°, Anti-V 220°.
7,It has emergency power. It can be used when the electric power is off.
2,Main specification;
Overall length:2100mm
width :500mm
Max Height:1170mm
Min Height:720mm
Adjust:≥450mm
Head section up:≥45° Head section down:≥90°
Back Section up:≥85° Back Section down:≥30°
Leg Section down:≥90° Leg Section opened:≥90°
Kidney Bridge Elevated:≥80mm
Reversed Trendelenburg:≥30° Trendelenburg:≥25°
Lateral Tilt:≥25°
Backward and Forward Movements:≥500mm
Level reset zero (When optional):±2°
3,Accessories:
| Numberal order | Name of accessories | Number |
| 1 | Head section | 1 |
| 2 | Anaesthetic Screen | 1 |
| 3 | Body support | Large 1.smart 1 |
| 4 | Shoulder support | 2 |
| 5 | Arm rest | 2 |
| 6 | Knee crutch | 2 |
| 7 | Cushion | 1 |
